| Mounting Type |
Through Hole |
| Package / Case |

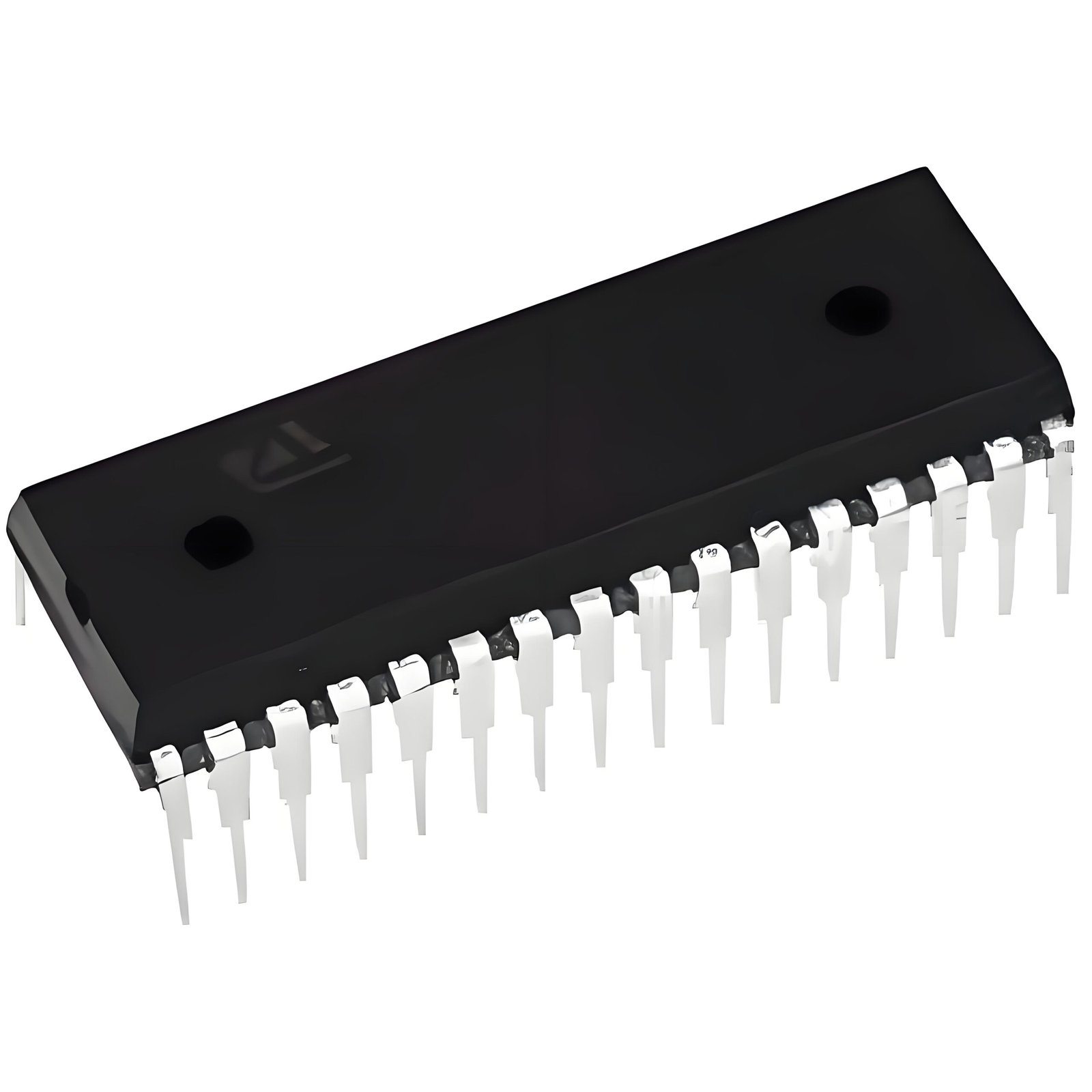

32-SDIP (0.400, 10.16mm) |
| Surface Mount |
NO |
| Number of Pins |
32 |
| Operating Temperature |
-10°C~70°C TA |
| Packaging |
Tube |
| JESD-609 Code |
e3 |
| Lead Free Code |
yes |
| Part Status |
Obsolete |
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
| Number of Terminations |
32 |
| ECCN Code |
EAR99 |
| Terminal Finish |
Tin (Sn) |
| Application |
Consumer Audio |
| Voltage – Supply |
7V~10.2V |
| Terminal Position |
DUAL |
| Peak Reflow Temperature (°C) |
Not Specified |
| Terminal Pitch |
1.778mm |
| Time @ Peak Reflow Temperature – Max (s) |
Not Specified |
| Base Part Number |
TDA7442 |
| Function |
Audio Tone Processor |
| Qualification Status |
Not Qualified |
| Power Supply |
9V |
| Power Supply Voltage – Minimum (Vsup) |
7V |
| Number of Channels |
2 |
| Interface |
I2C |
| Specification |
0.5dB |
| Consumer IC Type |
Tone Control Circuit |
| Number of Bands |
2 |
| Total Harmonic Distortion |
0.01% |
| Channel Separation |
90 dB |
| Seating Height (Max) |
5.08mm |
| Width |
10.16mm |
| RoHS Status |
ROHS3 Compliant |
