| Lifecycle Status |
ACTIVE (Last Updated: 5 hours ago) |
| Factory Lead Time |
7 Weeks |
| Chassis |
Surface Mount |
| Mounting Type |
Surface Mount |

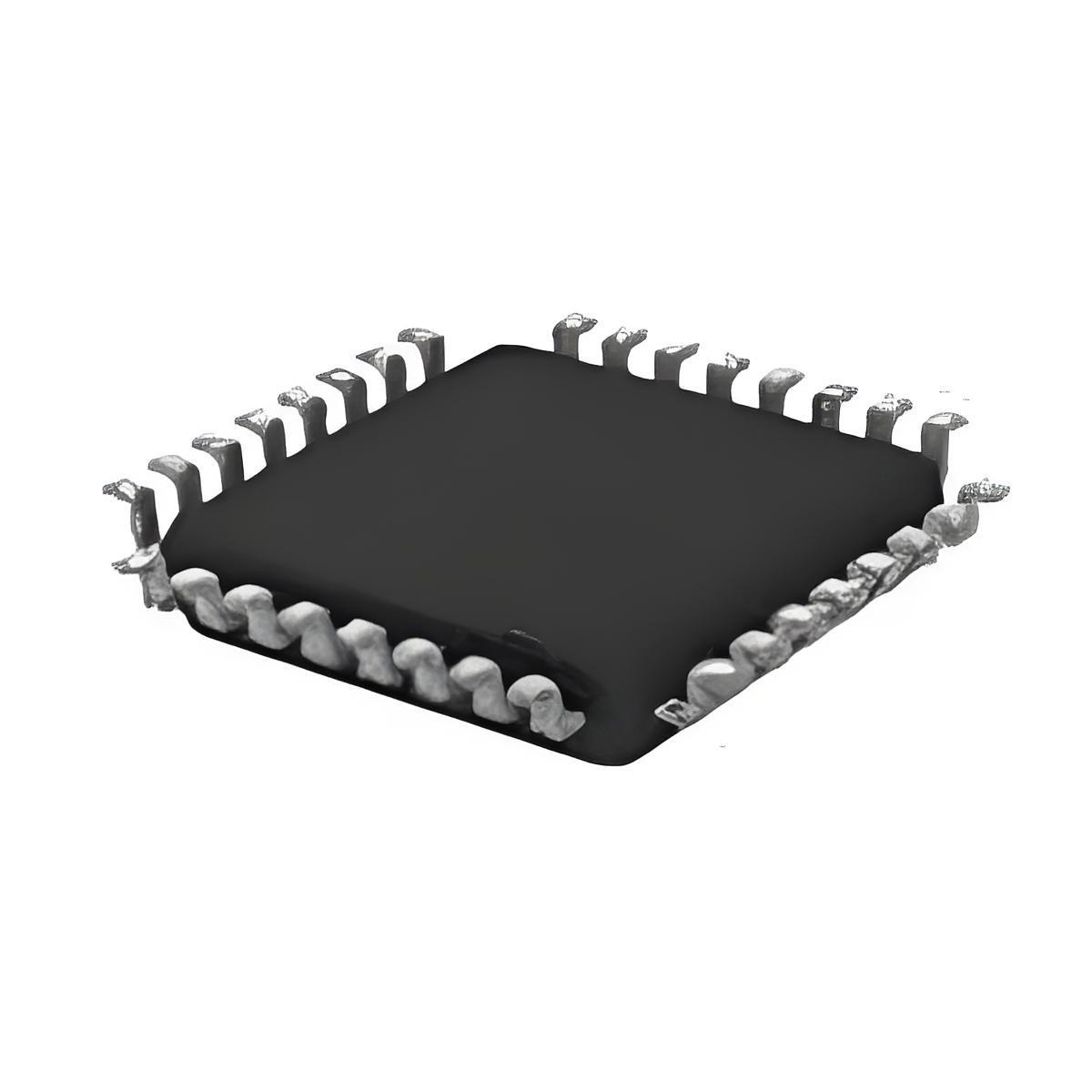

| Package / Case |
32-LQFP |
| Number of Pins |
32 |
| Mass |
773.99868mg |
| Operating Temperature |
-40°C~85°C |
| Packaging |
Tray |
| Series |
100EP |
| Published |
2006 |
| JESD-609 Code |
e3 |
| Lead Free Code |
yes |
| Part Status |
Active |
| Moisture Sensitivity Level (MSL) |
2 (1 Year) |
| Number of Terminations |
32 |
| ECCN Code |
EAR99 |
| Terminal Finish |
Tin (Sn) |
| Additional Features |
NECL MODE: VCC=0 WITH VEE= -3.0V TO -3.6V |
| Voltage – Supply |
3V~3.6V |
| Terminal Position |
QUAD |
| Terminal Form |
Gull Wing |
| Peak Reflow Temperature (°C) |
260 |
| Supply Voltage |
3.3V |
| Depth |
7mm |
| Time @ Peak Reflow Temperature – Max (s) |
40 |
| Base Part Number |
MC100EP195 |
| Function |
Programmable |
| Power Supply Voltage – Maximum (Vsup) |
3.6V |
| Power Supply |
-4.5V |
| Power Supply Voltage – Minimum (Vsup) |
3V |
| Maximum Input Voltage |
2.42V |
| Halogen Free |
Halogen Free |
| Output Polarity |
COMPLEMENTARY |
| Taps / Steps |
1024 |
| Number of Independent Delays |
1 |
| First Tap Delay |
2.2ns |
| Programmable Delay Line |
YES |
| Total Delay Available |
2.2ns ~ 12.2ns |
| Total Delay – (Typical) (td) |
12.2 ns |
| Contact Increment |
10ps |
| Height |
1.45mm |
| Length |
7mm |
| Width |
7mm |
| SVHC Compliance |
No SVHC |
| Radiation Hardening |
None |
| RoHS Status |
ROHS3 Compliant |
| Lead Free |
Lead Free |
