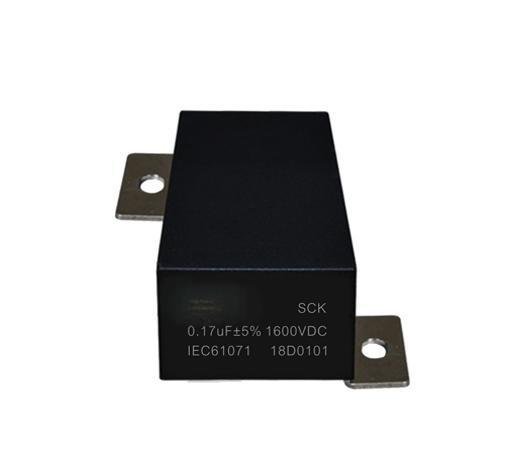

Description
| Category | Details |
|---|---|
| Features | – Low ESR and ESL – Superior dv/dt enables faster overvoltage and overcurrent handling – Significantly reduces internal core temperature rise through distributed current technology: – Ambient temperature 85°C: temperature rise ≤8°C – Ambient temperature 105°C: temperature rise ≤6°C – High-temperature withstand voltage: – T/T: 1.5*Undc (105°C, 60S), product leakage current ≤10mA – T/C: 3000VAC/60S, no flicker or dielectric breakdown – THB test: Undc, 85°C, RH 85% – 500H: △C ≤±5% – 1000H: △C ≤±10% |
| Construction | – Structure: Internal series winding structure – Dielectric: Polypropylene film – Electrode: Double-sided metallized film – Terminals: Copper sheet ends – Encapsulation: UL94V-0 flame-retardant housing and epoxy resin encapsulation |
| Typical Applications | – Automotive radio drive systems, automotive charging piles, energy storage systems for fast charging lines, etc. |
