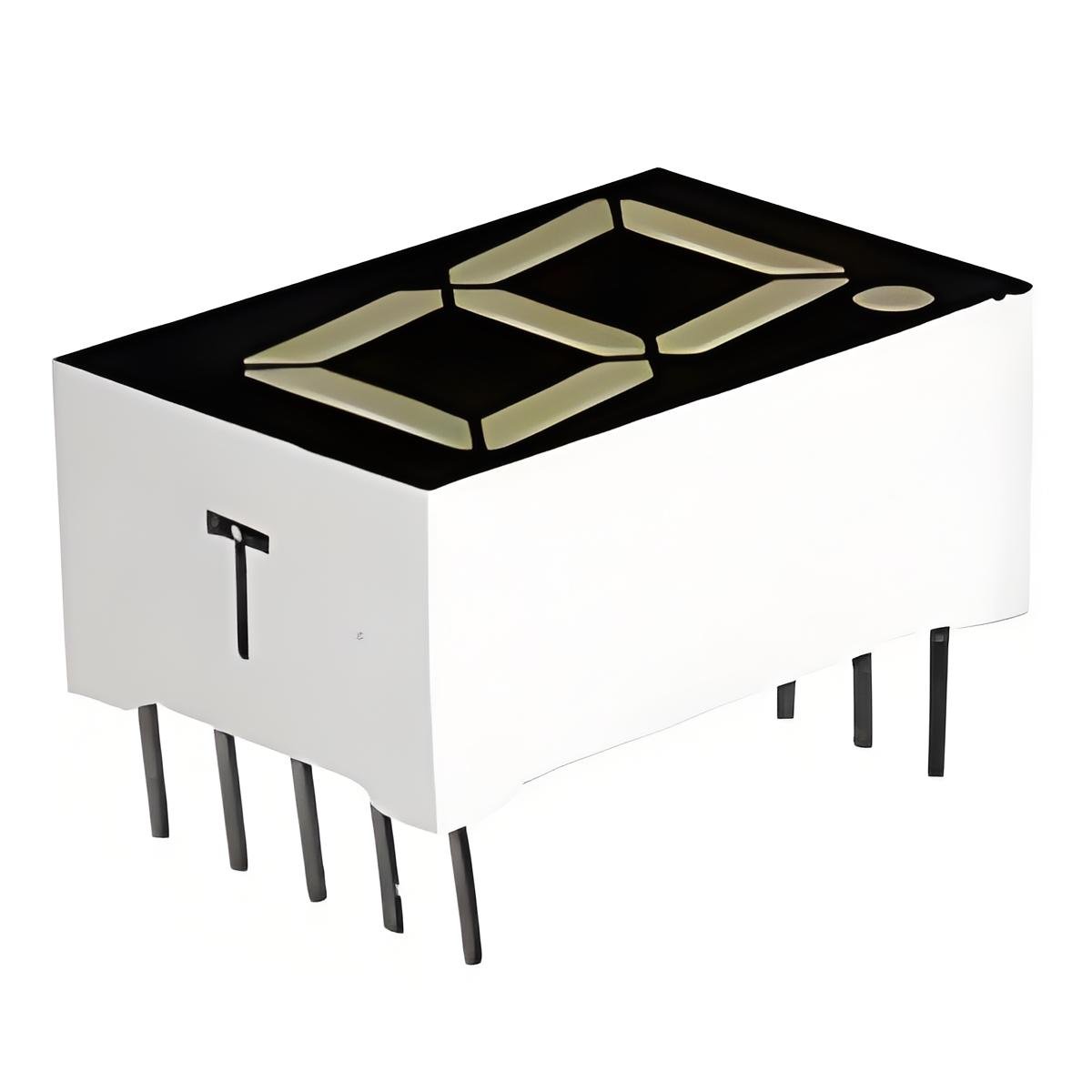

Description
| Attribute | Reference Value |
|---|---|
| Chassis | Through Hole |
| Package/Case | 10-DIP (0.400, 10.16mm) |
| Number of Pins | 10 |
| Power Dissipation (Max) | 60mW |
| Packaging | Bulk |
| Published | 2008 |
| Size/Dimensions | 0.748 Hx0.492W x 0.315 D 19.00mmx12.50mmx8.00mm |
| JESD-609 Code | e1 |
| Lead-Free Code | yes |
| Part Status | Obsolete |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| Color | Red |
| Number of Functions | 1 |
| Operating Supply Voltage | 2V |
| Element Configuration | Common Anode |
| Forward Current | 20mA |
| Test Current | 10mA |
| Luminous Intensity | 14 mcd |
| Wavelength – Peak | 650nm |
| Display Type | 7-Segment |
| Number of Characters | 1 |
| Number of Segments | 7 |
| Digit/Letter Size | 0.58″ 14.60mm |
| Common Pin | Common Anode |
| Character Width | 8.3mm |
| Height | 18.9992mm |
| Viewing Area (Height) | 14.6mm |
| Character Height | 14.6mm |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
