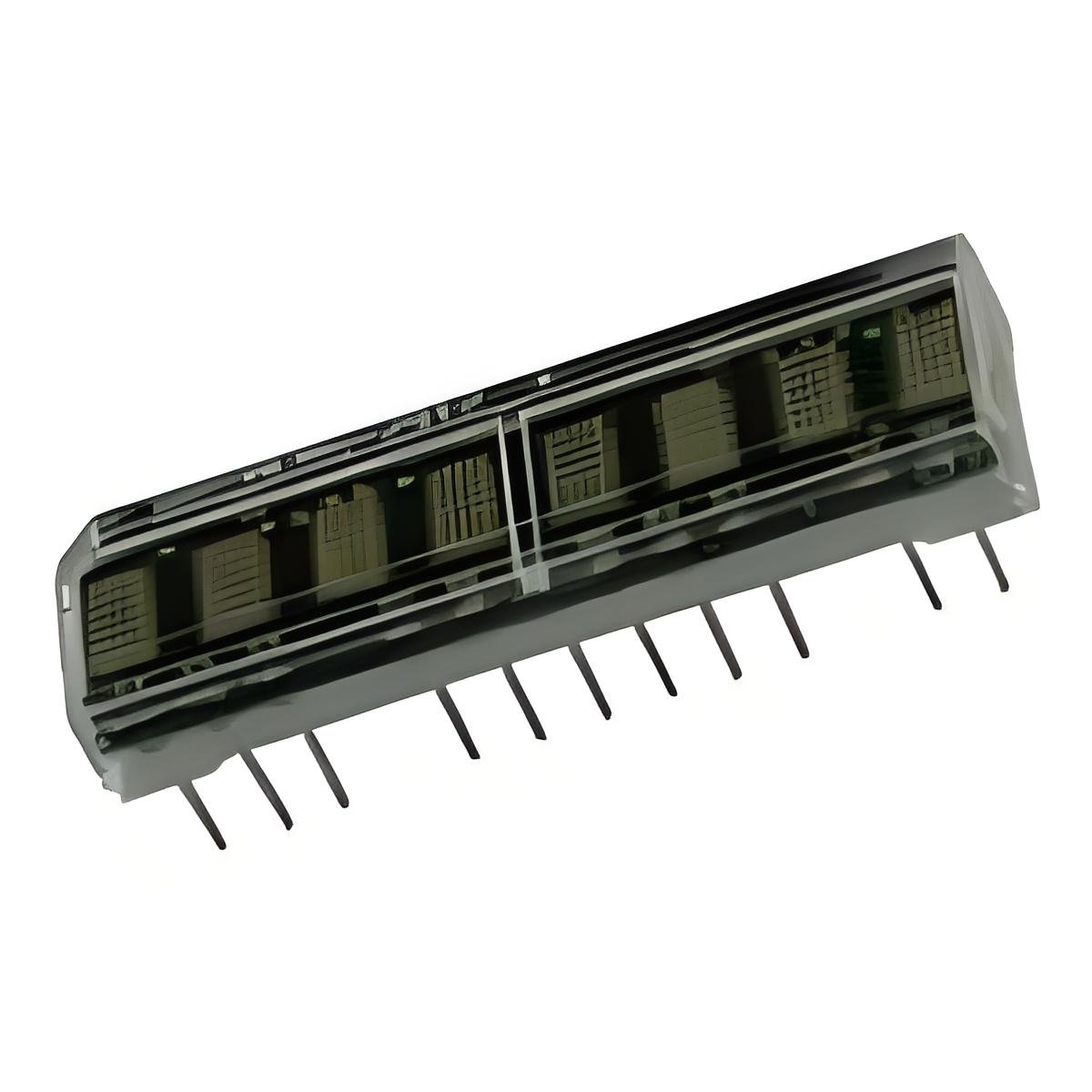

Description
| Attribute | Reference Value |
|---|---|
| Contact Plating | Copper, Tin |
| Chassis | Through Hole |
| Package/Case | DIP |
| Number of Pins | 14 |
| Number of Elements | 280 |
| Usage Level | Industrial grade |
| Series | HCMS-29xx |
| Published | 2002 |
| Size/Dimensions | 1.40Lx0.40W x 0.20 H 35.56mmx10.16mmx5.08mm |
| JESD-609 Code | e2 |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN Code | EAR99 |
| Terminal Finish | Tin/Copper (Sn/Cu) |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Color | Green |
| Additional Features | TTL Compatible |
| Voltage – Rated DC | 5V |
| Number of Functions | 8 |
| Depth | 10.16mm |
| Operating Supply Voltage | 5V |
| Configuration | 5 x 7 |
| Interface | Serial |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Element Configuration | Common Cathode |
| Power Dissipation | 2.4W |
| Forward Current | 800μA |
| Forward Voltage | 5V |
| Luminous Intensity | 114 μcd |
| Wavelength – Peak | 568 nm |
| Power Consumption | 2.4W |
| Number of Characters | 8 |
| Dominant Wavelength | 574 nm |
| Character Width | 2.11mm |
| Height | 5.08mm |
| Viewing Area (Height) | 3.71mm |
| Character Height | 3.81mm |
| Reach SVHC | No SVHC |
| Radiation Hardening | None |
| RoHS Status | ROHS3 Compliant |
| Lead Free | Lead Free |
