| Lifecycle Status |
ACTIVE (Last Updated: 1 day ago) |
| Factory Lead Time |
9 Weeks |
| Contact Plating |
Tin |
| Mounting Type |
Surface Mount |

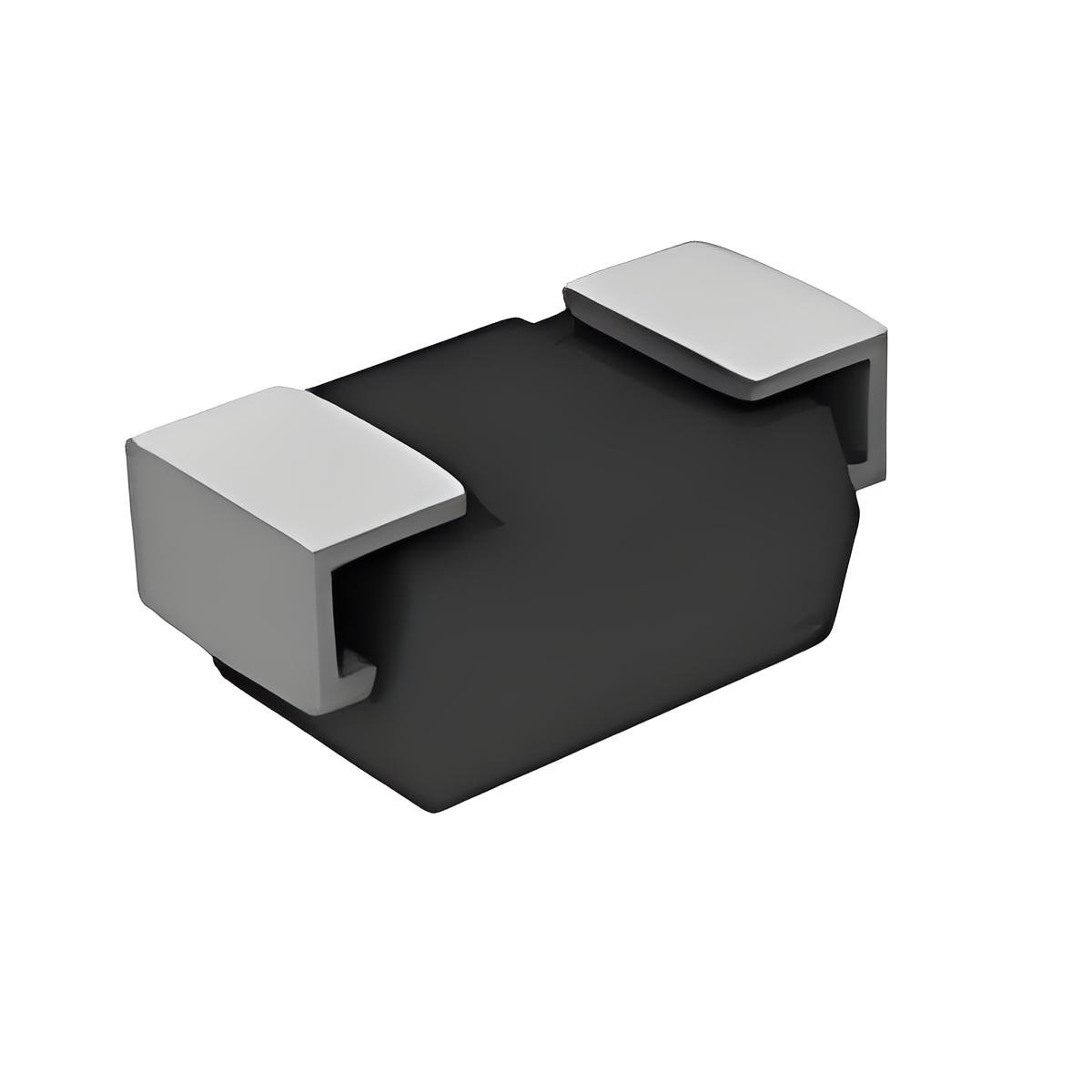

| Package/Case |
DO-214AC, SMA |
| Surface Mount |
YES |
| Pin Count |
2 |
| Material |
Plastic |
| Breakdown Voltage / V |
12.6V |
| Number of Elements |
1 |
| Operating Temperature |
-65°C ~ 150°C |
| Packaging |
Cut Tape (CT) |
| Published |
2003 |
| Tolerance |
±5% |
| JESD-609 Code |
e3 |
| Lead Free Code |
yes |
| Part Status |
Active |
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
| Number of Terminations |
2 |
| Termination |
SMD/SMT |
| ECCN Code |
EAR99 |
| HTS Code |
8541.10.00.50 |
| Rated Power |
1.5W |
| Voltage – Rated DC |
12V |
| Maximum Power Dissipation |
1.5W |
| Terminal Position |
DUAL |
| Terminal Form |
C – Bend |
| Peak Reflow Temperature (°C) |
260 |
| Time @ Peak Reflow Temp – Max (s) |
40 |
| Base Part Number |
SMA5927 |
| Number of Pins |
2 |
| Working Voltage |
12V |
| Polarity |
UNIDIRECTIONAL |
| Impedance |
6.5Ohm |
| Element Configuration |
Single |
| Diode Type |
Zener |
| Reverse Leakage Current @ Vr |
500nA @ 9.1V |
| Power Dissipation |
500mW |
| Voltage – Forward (Vf) @ If |
1.5V @ 200mA |
| Maximum Reverse Leakage Current |
500nA |
| Impedance – Max |
6.5Ohm |
| Halogen Free |
Halogen Free |
| Test Current |
31.2mA |
| Reference Voltage |
12V |
| Forward Voltage |
1.5V |
| Zener Voltage |
12V |
| Maximum Voltage Tolerance |
5% |
| Peak Reverse Current |
500nA |
| Voltage Tolerance |
5% |
| ESD Protection |
Yes |
| Zener Current |
125mA |
| Height |
2mm |
| Length |
4.32mm |
| Width |
2.6mm |
| SVHC Status |
No SVHC |
| Radiation Hardening |
None |
| RoHS Status |
ROHS3 Compliant |
| Lead Free |
Lead Free |
