| Lifecycle Status |
LIFETIME (Last Updated: 2 days ago) |
| Factory Lead Time |
9 Weeks |
| Mounting Type |
Surface Mount |

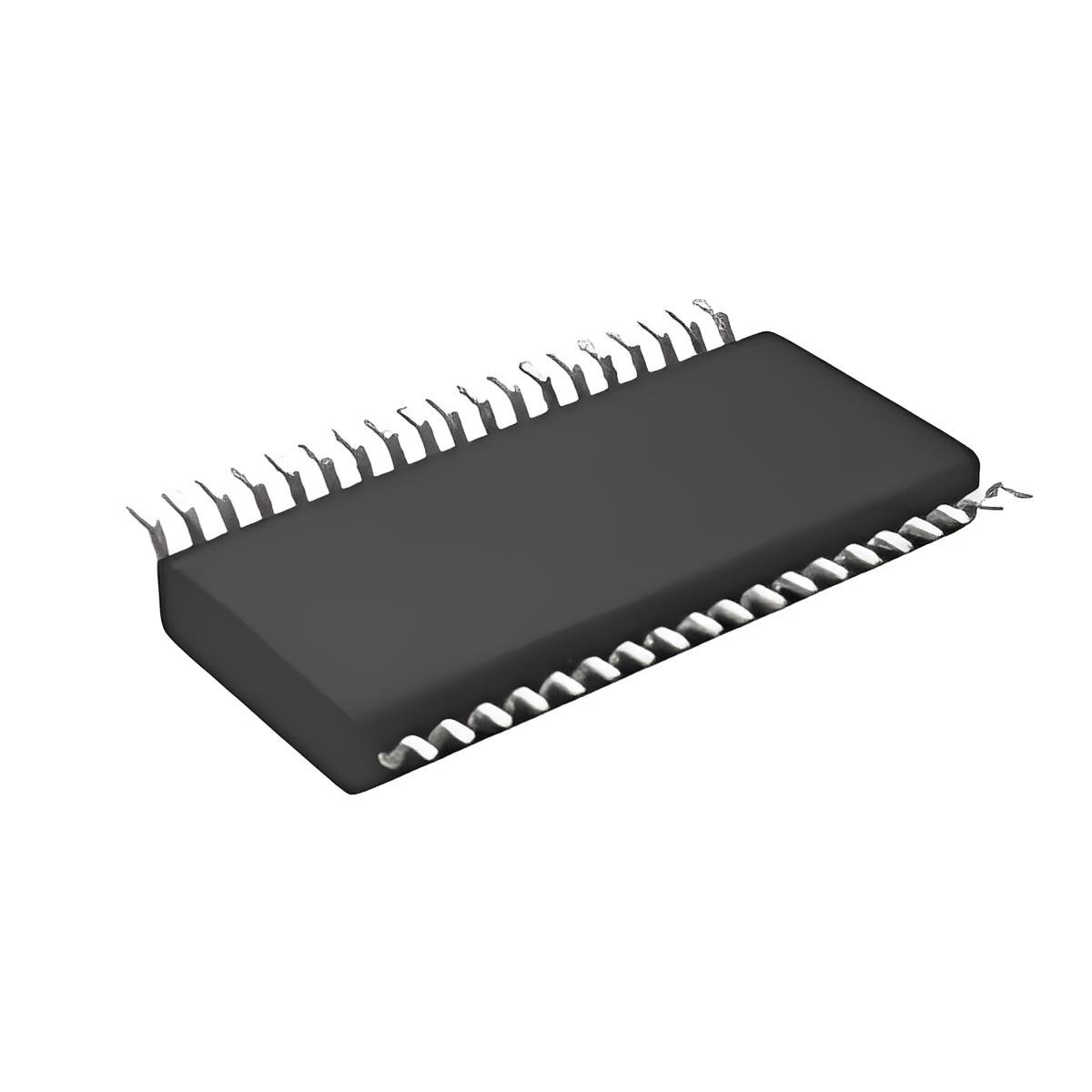

| Package / Case |
38-TFSOP (0.173, 4.40mm Width) |
| Surface Mount |
YES |
| Number of Pins |
38 |
| Operating Temperature (Max.) |
85°C |
| Operating Temperature (Min.) |
-40°C |
| Packaging |
Tape & Reel (TR) |
| Published |
2004 |
| JESD-609 Code |
e3 |
| Lead Free Code |
yes |
| Part Status |
Obsolete |
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
| Number of Terminations |
38 |
| Type |
HDMI Port Protection |
| Terminal Finish |
Tin (Sn) |
| Application |
Consumer Electronics, DVD-RW Players, Set Top Box |
| HTS Code |
8542.39.00.01 |
| Terminal Position |
DUAL |
| Terminal Form |
Gull Wing |
| Peak Reflow Temperature (°C) |
260 |
| Number of Functions |
1 |
| Terminal Pitch |
0.5mm |
| Time @ Peak Reflow Temperature – Max (s) |
Not Specified |
| Base Part Number |
CM2020 |
| Pin Count |
38 |
| Qualification Status |
Not Qualified |
| Operating Supply Voltage |
5V |
| Power Supply |
5V |
| Temperature Grade |
INDUSTRIAL |
| Length |
9.7mm |
| Seat Height (Max) |
1.2mm |
| Width |
4.4mm |
| RoHS Status |
ROHS3 Compliant |
