| Chassis |
Surface Mount |
| Mounting Type |
Surface Mount |
| Package / Case |

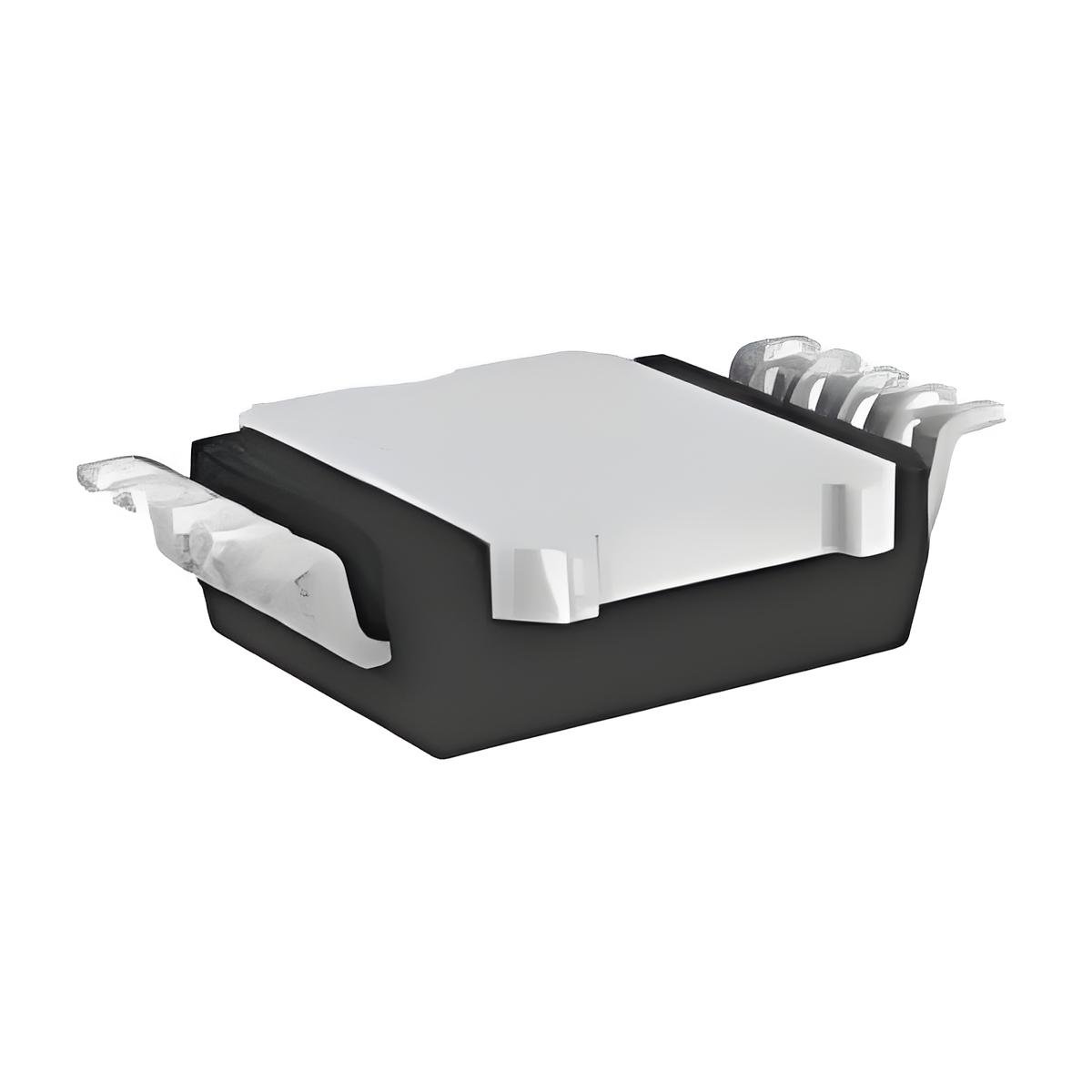

PowerSO-10 Exposed Bottom Pad |
| Number of Pins |
10 |
| Operating Temperature |
0°C~85°C |
| Packaging |
Tape & Reel (TR) |
| JESD-609 Code |
e3 |
| Lead Free Code |
yes |
| Part Status |
Obsolete |
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
| Number of Terminations |
10 |
| Terminal Finish |
Matte Tin (Sn) – annealed |
| Application |
Converter, Analog and Digital Satellite Receivers |
| Additional Features |
ALSO REQUIRES 22V TO 25V SUPPLY |
| Maximum Power Dissipation |
14W |
| Terminal Position |
DUAL |
| Terminal Form |
Gull Wing |
| Peak Reflow Temperature (°C) |
250 |
| Number of Functions |
1 |
| Supply Voltage |
16V |
| Time @ Peak Reflow Temperature – Max (s) |
30 |
| Base Part Number |
LNBP14 |
| Pin Count |
10 |
| Number of Outputs |
1 |
| Maximum Output Current |
800mA |
| Polarity |
Positive |
| Analog IC – Other Types |
Analog Circuit |
| Output Current |
800mA |
| Voltage – Output |
13V 18V |
| Minimum Input Voltage |
23V |
| Maximum Input Voltage |
25V |
| Maximum Supply Current (Isup) |
6mA |
| Power Supply Rejection Ratio |
45dB |
| Length |
9.4mm |
| Seat Height (Max) |
3.7mm |
| Width |
7.5mm |
| Radiation Hardening |
None |
| RoHS Status |
ROHS3 Compliant |
| Lead Free |
Lead Free |
