| Lifecycle Status |
ACTIVE (Last Updated: 1 day ago) |
| Factory Lead Time |
12 Weeks |
| Mounting Type |
Surface Mount |
| Package / Case |

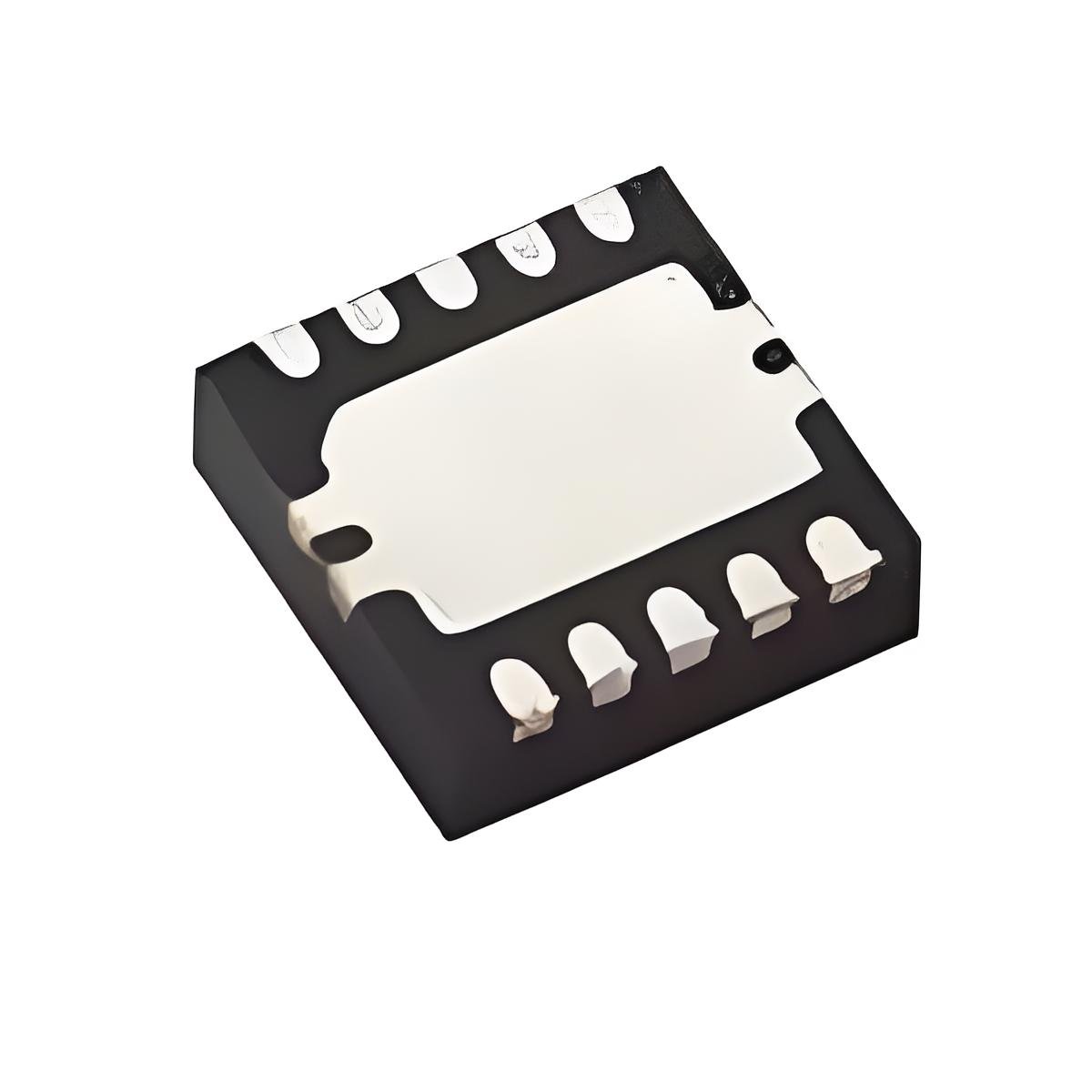

10-VFDFN Exposed Pad |
| Surface Mount |
YES |
| Number of Pins |
10 |
| Operating Temperature |
-40°C~85°C |
| Packaging |
Tape & Reel (TR) |
| JESD-609 Code |
e4 |
| Lead Free Code |
yes |
| Part Status |
Active |
| Moisture Sensitivity Level (MSL) |
2 (1 Year) |
| Number of Terminations |
10 |
| ECCN Code |
EAR99 |
| Terminal Finish |
Nickel/Palladium/Gold (Ni/Pd/Au) |
| Application |
Converter, DDR |
| Rated Power |
790mW |
| Maximum Power Dissipation |
1.92W |
| Terminal Position |
DUAL |
| Peak Reflow Temperature (°C) |
260 |
| Number of Functions |
1 |
| Supply Voltage |
3.3V |
| Terminal Pitch |
0.5mm |
| Base Part Number |
TPS51200 |
| Pin Count |
10 |
| Number of Outputs |
1 |
| Output Voltage |
3.5V |
| Output Type |
Fixed |
| Maximum Output Current |
3A |
| Polarity |
Negative, Positive |
| Power Supply Voltage – Minimum (Vsup) |
2.375V |
| Power Dissipation |
1.92W |
| Output Current |
3A |
| Quiescent Current |
500μA |
| Accuracy |
5 % |
| Minimum Input Voltage |
2.3V |
| Maximum Input Voltage |
3.5V |
| Reference Voltage |
1.8V |
| Interface IC Type |
Bus Termination Support Circuit |
| Output Voltage |
1.25V |
| Height |
1mm |
| Length |
3mm |
| Width |
3mm |
| Device Thickness |
900μm |
| SVHC Compliance |
No SVHC |
| Radiation Hardening |
None |
| RoHS Status |
ROHS3 Compliant |
| Lead Free |
Lead Free |
