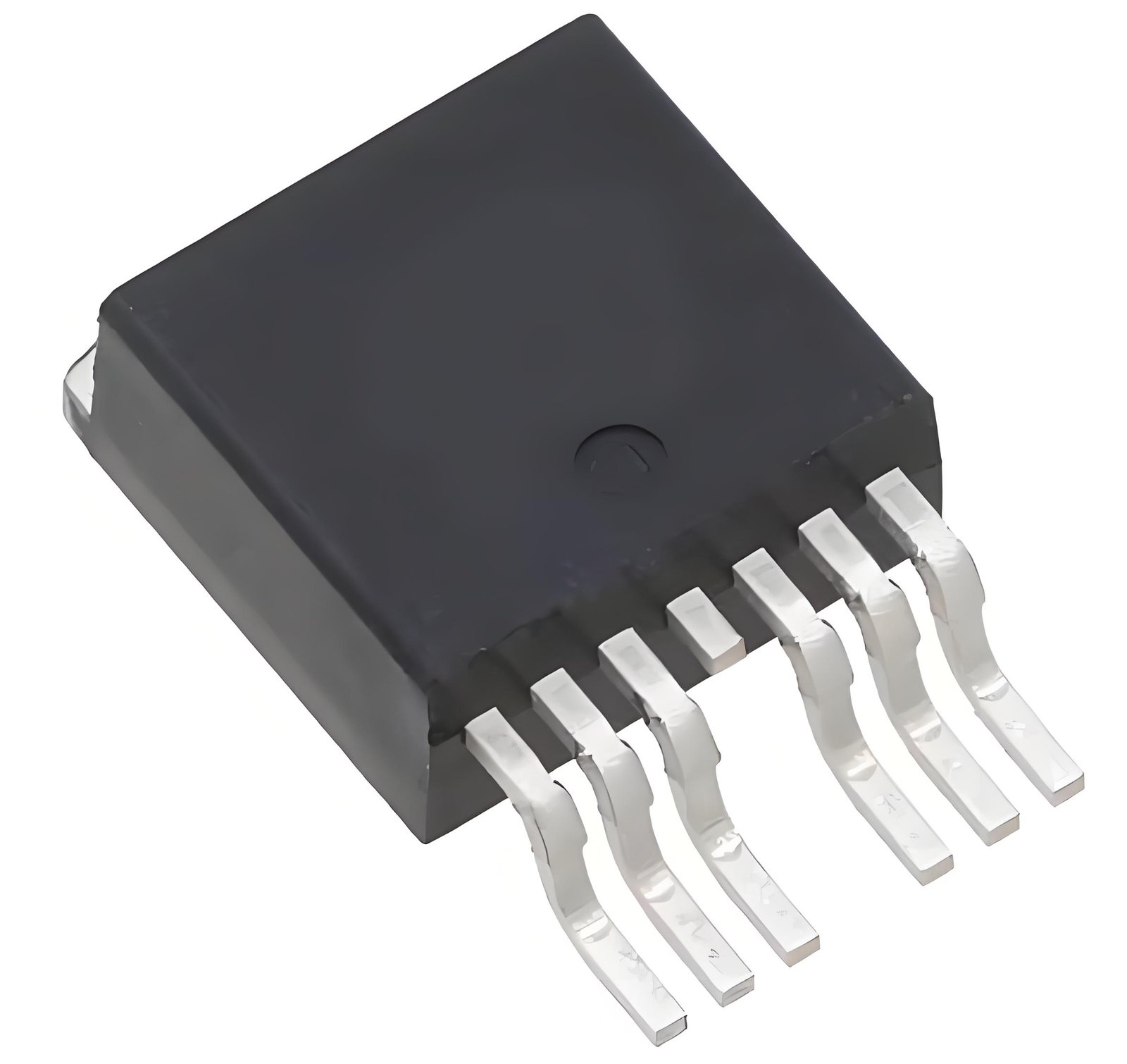

| Package Type |
TO – 263 – 7L |
/ |
/ |
| Configuration |
Single – transistor configuration |
/ |
/ |
| Polarity |
N – Channel (N – type current) |
/ |
/ |
| Drain – Source Voltage (VDS) |
100 |
V |
Maximum |
| Gate – Source Voltage (VGS) |
±20 |
V |
/ |
| Threshold Voltage (Vthtyp) |
3 |
V |
Typical value |
| On – Resistance (RDS(on)) |
1.2 mΩ @ VGS = 10V |
mΩ |
Typical value |
| Maximum Drain Current (ID) |
250 |
A |
/ |
| Technology Type |
SGT (Super Gate Trench) technology |
/ |
/ |
| Maximum Power Dissipation |
Evaluable according to load and operating conditions |
/ |
Suitable for high – power applications |
| Switching Speed |
Fast switching characteristics |
/ |
Suitable for high – frequency circuits |
| Operating Temperature Range |
Wide temperature range |
/ |
Suitable for various environmental conditions |
